Alumina Ceramic Laser Reflector | High Reflectivity
- Product Item : HYRD-AC014
- Category： Ceramic Laser Reflectors
- Material: Alumina ceramic
- Purity: 99%
- Surface: Full glazed
Alumina Ceramic Laser Reflector | High Reflectivity

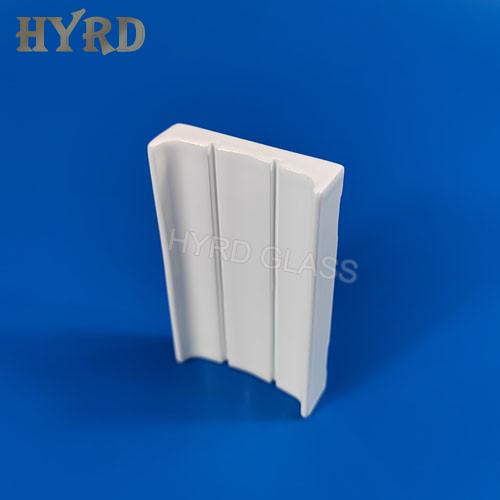

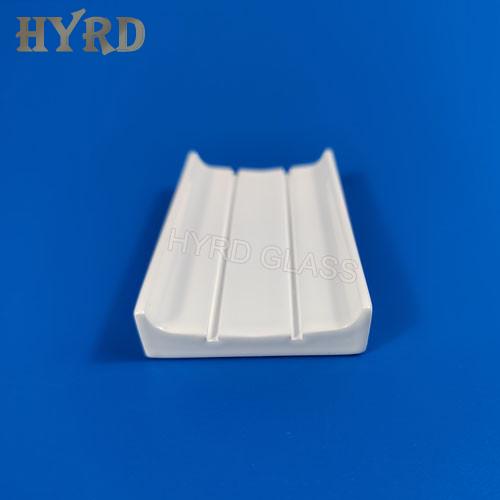

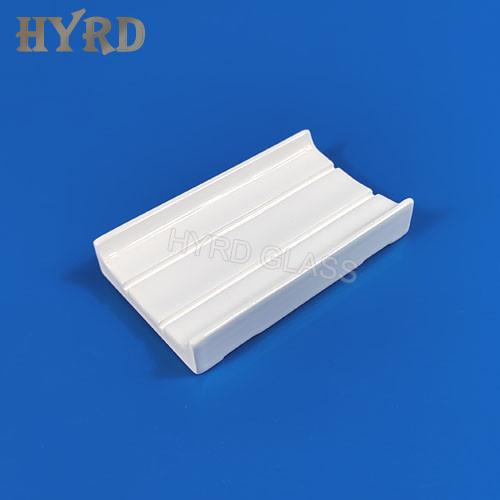

The customized ceramic plate is made of 99% alumina ceramic, with full glazed surface, which is used as laser reflectors in pumping laser head. It has high reflectivity, long service life and stable working performance.Main Characteristics of Ceramic Laser Reflectors:
1. The surface is fully glazed for high reflectivity and easy cleaning;
2. The reflectivity reaches 98% at the wavelength of 600-1000nm;
3. The reflectivity exceeds 96%at the wavelength of 400-1200nm;
4. The green body has appropriate porosity and high-strength characteristics.
Main physical properties:
Color
White
Density
3.1Mg/m⊃3
Porosity
22%
Bending strength
170Mpa
Thermal expansion coefficient
7.9×10-6--/С (200～500℃)
9×10-6/С（200～1000℃）
