Custom Shapes Transparent Quartz Plates | High-Precision Fabrication
- Product Item : HYRD-D035
- Category： Quartz Windows
- Material: High purity quartz glass
- Shape: Custom
- Surface: Polished /Transparent
- Minimum Order Quantity: Negotiable

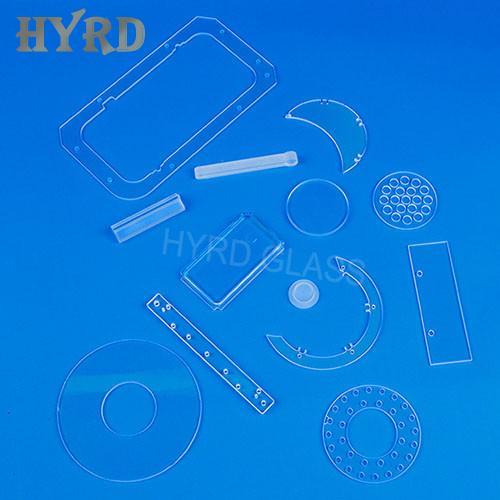

Custom Shapes Transparent Quartz Plates | High-Precision Fabrication
Custom-shaped transparent quartz plates are precision-engineered fused silica components manufactured to meet exact dimensional, optical and thermal requirements. These plates are ideal for applications demanding superior clarity, thermal stability and chemical resistance in non-standard geometries.
Key Features
* Ultra-High Purity Material: - 99.99% SiO₂ content* Exceptional Optical Properties:
- UV to IR transmission (170nm to 2500nm)
- Low OH content (<10ppm) for UV applications
- High OH content (up to 1000ppm) for IR applications
* Precision Tolerances:
- Thickness tolerance: ±0.01mm
- Flatness: λ/10 to λ/2 (at 632.8nm)
- Parallelism: <1 arc minute
* Custom Geometry Capabilities:
- Complex contours and profiles
- Precision holes and cutouts
- Beveled and polished edges
- Surface finishes from fine ground to optical polish
Material Options
1. **Standard Fused Quartz**:
- Typical OH content: 150-200ppm
- Good UV transmission
- Cost-effective solution
2. **UV-Grade Fused Silica**:
- OH content: <10ppm
- Excellent deep UV transmission
- Low fluorescence
3. **IR-Grade Fused Quartz**:
- Higher OH content
- Superior IR transmission
- Reduced solarization
Surface Finish Options
- As-Cut**: For non-critical applications
- Fine Ground**: For mechanical interfaces
- Polished**: For optical applications
- Double-Sided Polished**: For precision optics
- Anti-Reflective Coated**: For maximum transmission
Why Choose Custom Quartz Plates?
* Tailored Solutions** - Exact specifications for unique applications
* Material Consistency** - Batch-to-batch uniformity
* Performance Reliability** - Stable under extreme conditions
* Technical Support** - Engineering assistance for optimal design
Custom-shaped transparent quartz plates provide the perfect solution when standard shapes cannot meet application requirements. Our fabrication capabilities ensure precise, repeatable results for even the most demanding specifications.
