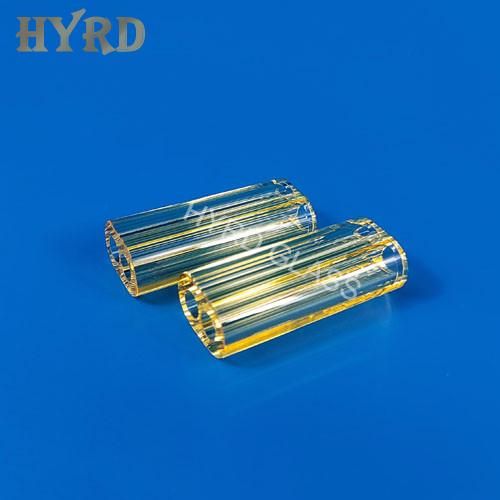

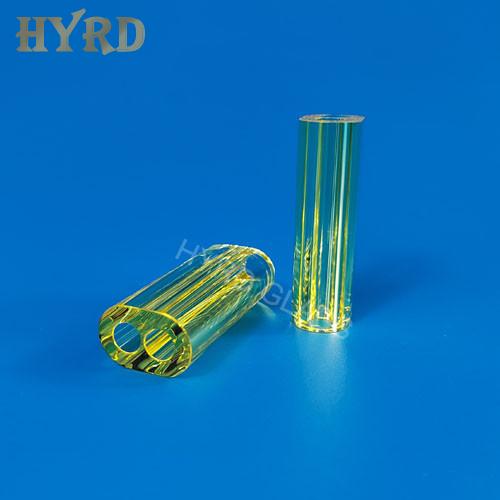

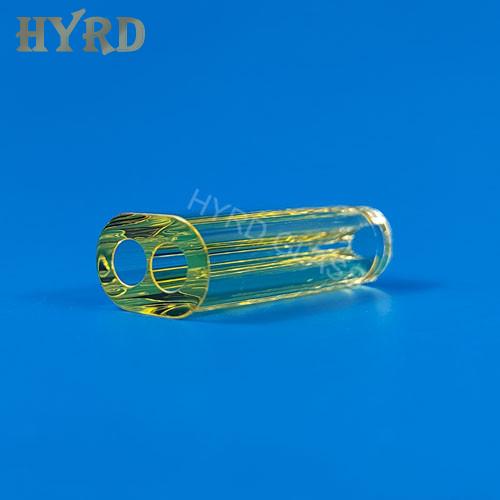

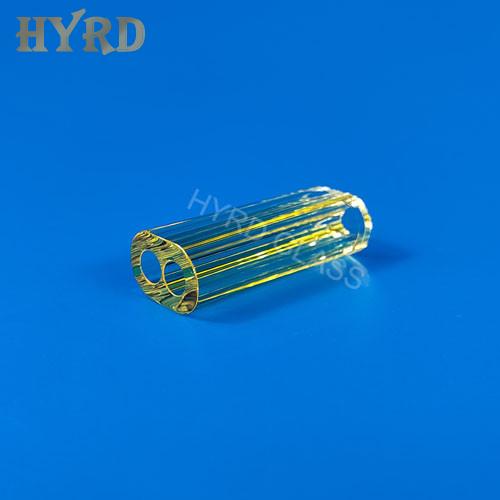

Double Bore Laser Flow Tubes for Nd:YAG Pump Chamber| 10% Samarium Doped Glass
- Product Item : HYRD-B053
- Category： Laser Flow Tubes & Flow Plates
- Material: 10% Samarium Doped Glass
- Surface: Clear
- Color: Light yellow
- Annealing process: Yes
Double Bore Laser Flow Tubes for Nd:YAG Pump Chamber| 10% Samarium Doped Glass
This double bore laser flow tube is made of 10% samarium doped glass. It is used for Nd:YAG Pump Chamber.The samarium doped glass can absorb ultraviolet light generated by krypton lamps, as well as 1064nm near-infrared light. It can effectively improve the reliability, lifespan, and laser radiation efficiency of laser components.
Material Properties
Expansion coefficient:
10.4 x 10-6/K (room temperature~300 ℃)
Refractive index:
ND=1.5755
Softening point:
526 ℃
Annealing point:
470 ℃

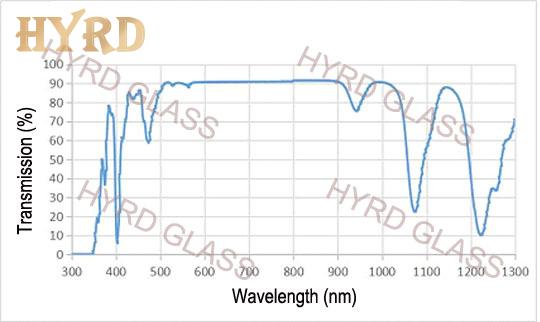

Spectrum
