High Precision Glass Tubes φ1.8*φ0.127*6.5mm for Optical Fiber Sleeves
- Product Item : HYRD-M033
- Category： Glass Capillaries
- Material: Borosilicate glass
- Outer diameter: 1.8±0.005mm
- Inner diameter: 0.127±0.001mm
- Application: Optical fiber sleeves

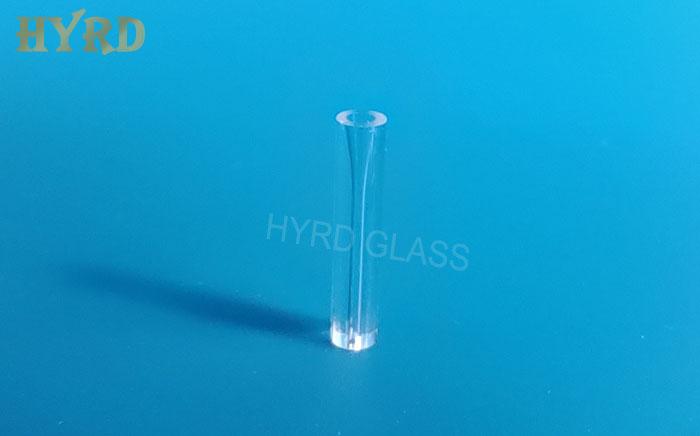

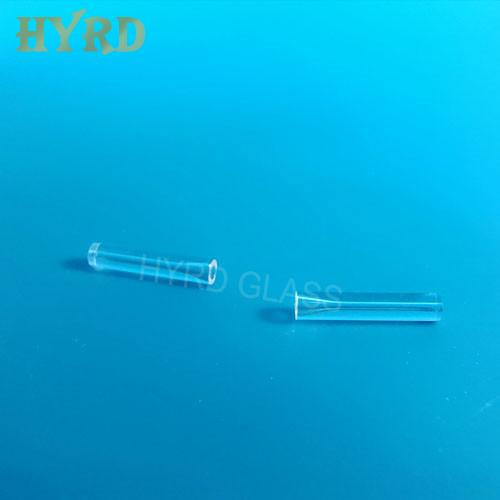

High Precision Glass Tubes φ1.8*φ0.127*6.5mm for Optical Fiber Sleeves
The glass tube with inner diameter 127μm is specifically used for optical fiber sleeves. The high tolerance 1μm is designed for high precision optical fiber application. The gass tubes are precision drawn by our machine, with tight tolerance.
Material
Borosilicate glass
Outer diameter
1.8±0.005mm
Inner diameter
0.127±0.001mm
Cone length
1.5mm
Length
6.5mm
Surface
Clear
Application
Optical fiber sleeves
OEM service
Available
