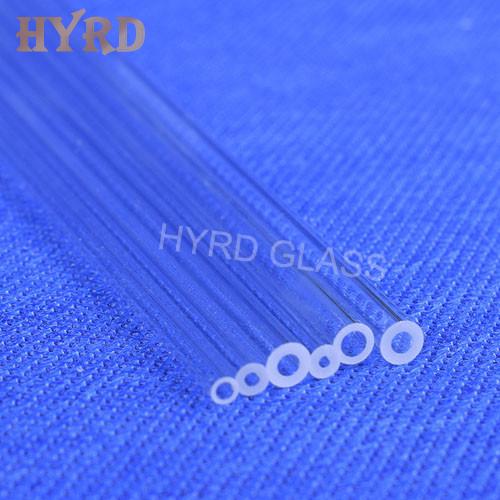

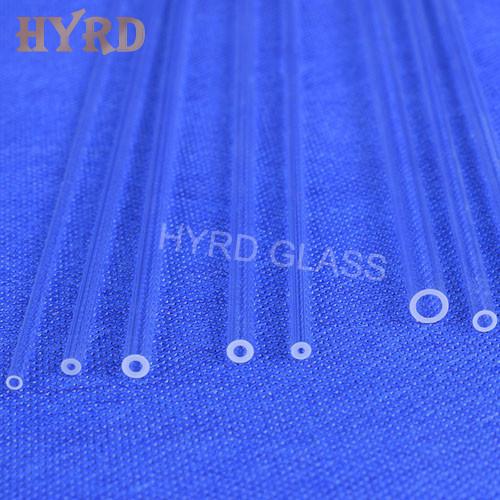

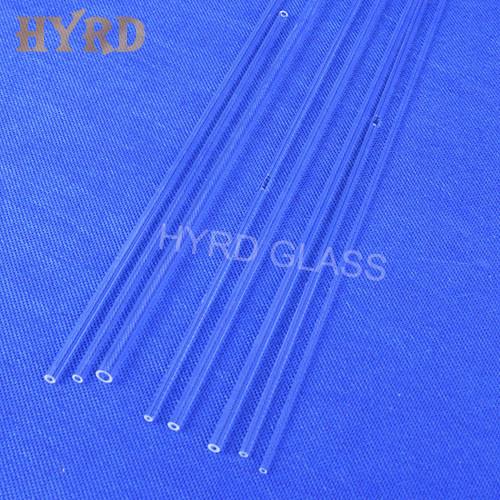

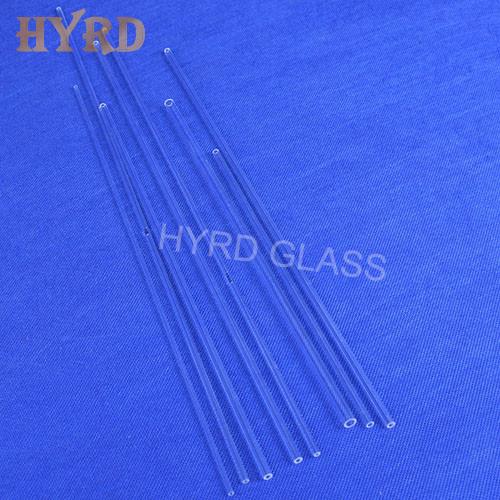

Quartz Glass Capillary Tubes | High Precision
- Product Item : HYRD-M011
- Category： Glass Capillaries
- Material: High purity quartz glass
- Purity: 99.99%
- Surface: Polished /Transparent
- Minimum Order Quantity: Negotiable
Quartz Glass Capillary Tubes | High Precision
Glass Capillaries, Quartz Capillaries, Quartz Capillary Tubes, Round Quartz Capillary TubesAs supplier of high precision glass capillary tubes, we supply a series of glass capillaries. The product is in high accuracy, tight tolerance, good concentricity, ultra clear and high temperature resistant.
The quartz glass capillary tube is drawn to meet exacting dimensional needs. The raw material is selected with high purity silicon dioxide content of 99.99%, and introducing core online temperature control, pressure control, and speed control technologies based on fiber drawing technology for automatic and precise feedback online control of the inner and outer diameters of glass tubes, various geometric sizes and specifications of precision circular glass capillaries are achieved. Cold processing CNC machine tools are used for batch cutting, and after strict annealing and end face precision grinding processes, precision circular glass tubes and special-shaped glass tube products are obtained.
Product Parameters
Product name
Quartz Glass Capillary Tubes
Material
High purity silica glass
Content
99.99%
Diameter
0.1-10mm
Tolerance
±0.03mm
Surface
smooth and transparent
Color
Clear
Concentricity
0.001mm
Length
1-1000mm
Coating
Customer’s option
